NeoSource 12-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 3″ titanium/neodymium compression driver, 12″ woofer – two-channel 2,200Wpeak amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 132 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NeoSource 12-A blends high performance and reliability in a compact package. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

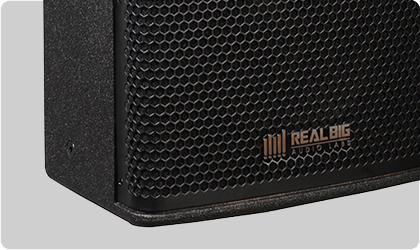

NeoSource 12-A
FR(-10dB):50 Hz - 20000 Hz
Max SPL:132 dBpeak
Coverage:V100°×H70°
Input sensitivity: MAX=+4dBu
Amplifier Power: 1100 W(Total Power)
AC100~250V; 50/60Hz
FEATURES
- Up to 132 dBpeak Sound Pressure Level
- 2200Wpeak(1100Wrms) Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 3" Titanium/Neodymium Compression Driver
- 12" Woofer /Neodymium
- Six M10 rigging points
- 35 mm Pole mount/Cap insert
| Cabinet/Case Material | Plywood |
| Hardware | 3 x M8 Top, 2 x M8 each side, 3 x M8 bottom, 2 x M8 rear |
| Handles | 2 Side |
| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black, White |
| Height | 23.46 inches |
| Width | 14.33 inches |
| Depth | 15.15 inches |
| Weight | 49.5 lbs |
| Total Power | 1100 W (2200 W Peak) |
| High frequencies | 300 W (600 W Peak) |
| Low frequencies | 800 W (1600 W Peak) |
| Output circuit design | SMPS+CLASS D |
| Cooling | Low-noise , Variable speed fans |
| Power supply | AC100V~AC250V~50/60Hz |

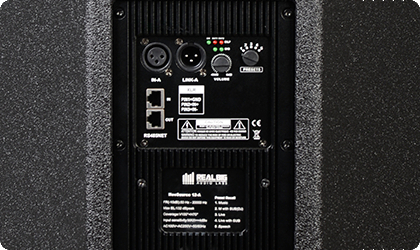

| Connections | Powercon IN/OUT |
